Common Model Markings
Use these markings when searching for an equivalent part. Match the original capacitor's capacitance, voltage, terminal layout and pin size before ordering.
Compatible equipment and replacement references

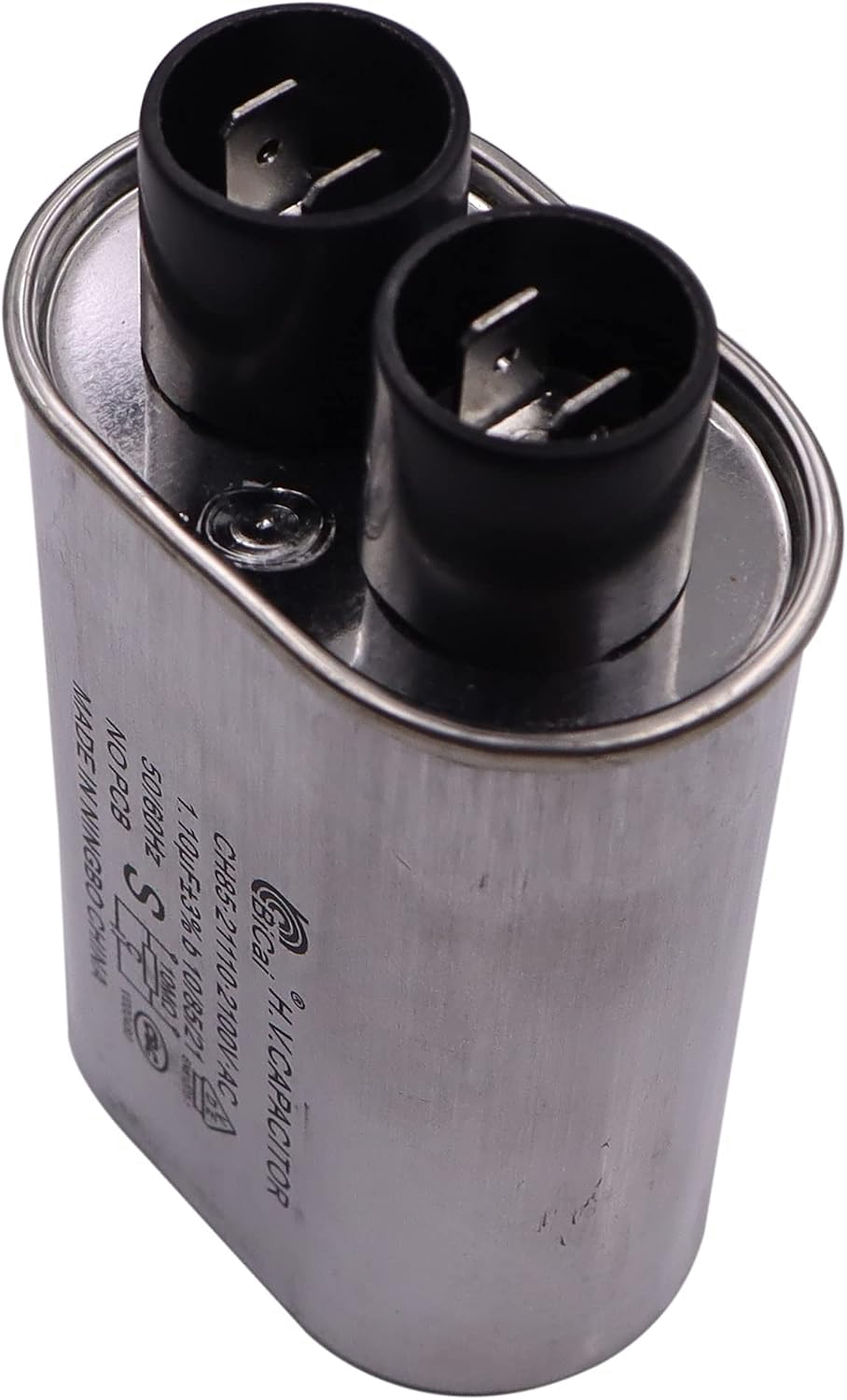

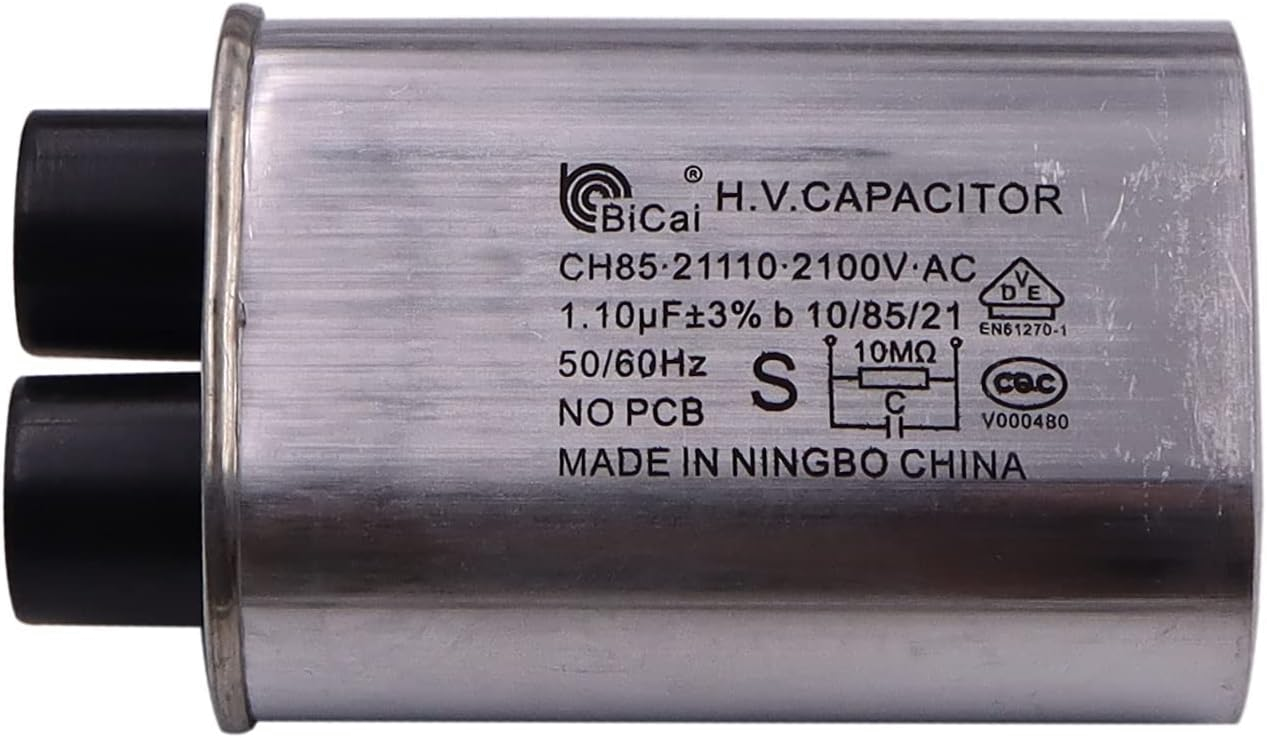

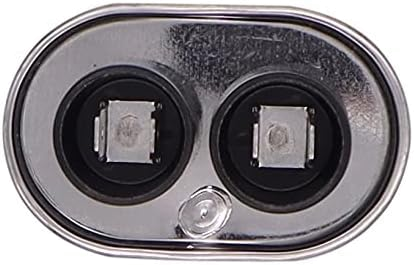

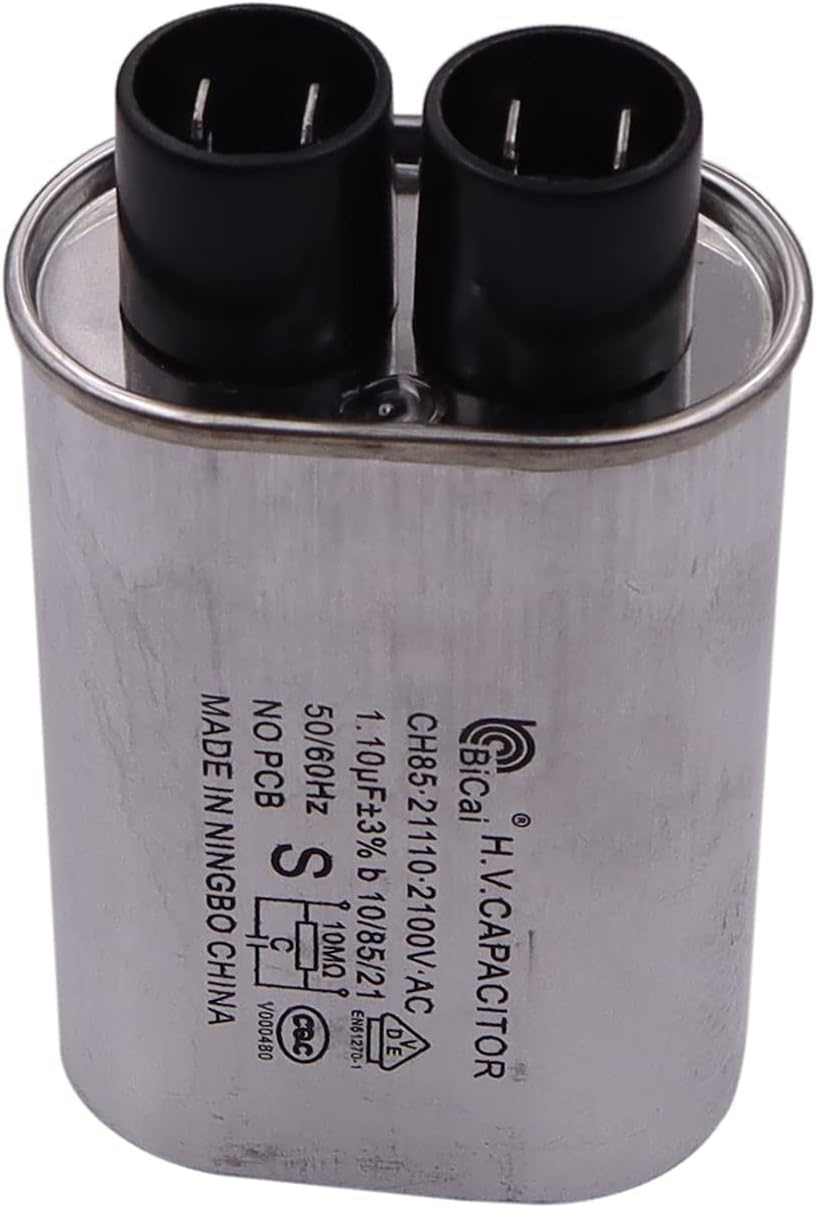

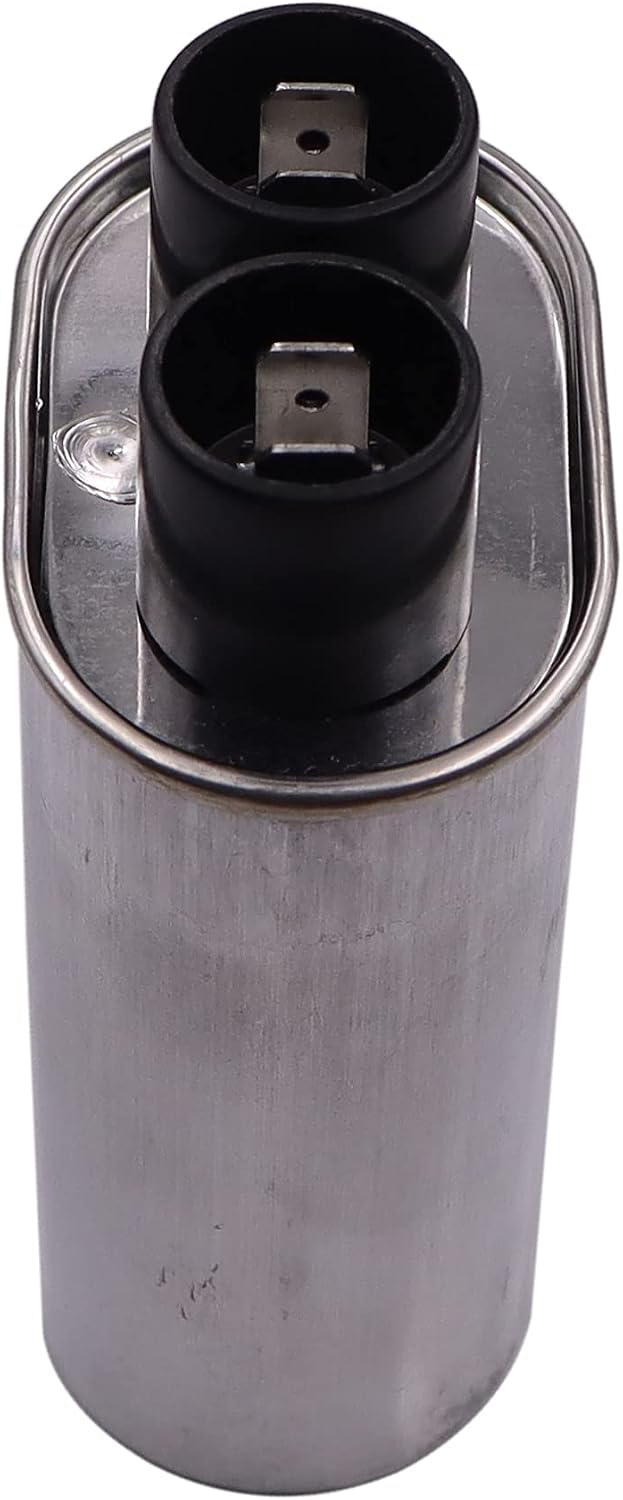

Model markings vary by manufacturer. These are search aliases and are not a guarantee of appliance-brand compatibility.Microwave Capacitor Replacement 2100V 1.10 uF Compatible with 99% of Household Microwave Oven Brands, Connect Pin 1/4" Standard Terminal
CQC and VDE Certificated, Connect Pin: 6.35x0.8mm/0.25x0.03in(1/4 in Standard Terminal)
US
500+ units
Planning a bulk order? Contact customer service for wholesale pricing and availability.
Unable to complete your purchase? Email customer service with the product model and destination country. We will help with availability or an alternative ordering method.
Capacitance1.10 uF
Voltage Rating2100V AC
Terminal Configuration2+2 Terminal
Pin Size1/4" Quick Connect (Large)
Internal Resistor10M Megohm
PCB ContentNo PCB
Frequency50/60 Hz
💡 Compatibility Tips
- Start by matching 1.10uF and 2100V AC, then verify frequency, resistor, mounting and physical dimensions against the original part.
- The original part should use the same 2+2 terminal grouping, or the appliance service documentation must explicitly approve this layout.
- Important: Check the pin size — this product uses 1/4" (large) quick connect tabs. Make sure this matches your original.
