Common Model Markings
Use these markings when searching for an equivalent part. Match the original capacitor's capacitance, voltage, terminal layout and pin size before ordering.
OEM cross-reference candidates
Compatible equipment and replacement references

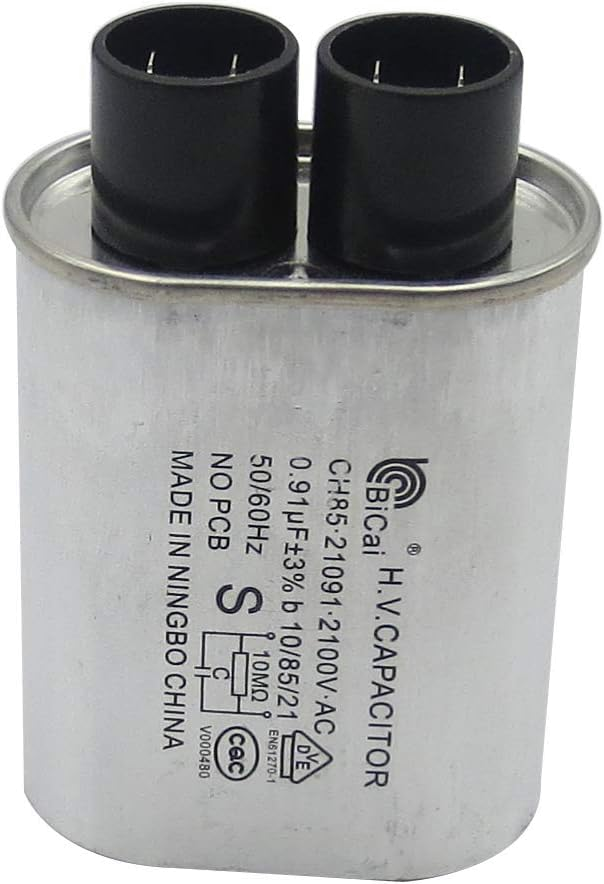

Model markings vary by manufacturer. These are search aliases and are not a guarantee of appliance-brand compatibility.CQC Universal Household Microwave HV Capacitor Replacement 2100V 0.91 uF MFD Compatible CH85 21091 AC H.V. Capacitor 10/85/21 50/60Hz NO PCB
Production Name: High Voltage Capacitor for Microwave, Wistand Voltage: 2100 V AC, Capacitor Volume: 0.91 uF MFD, Tolerance:+/- 3%, OverView Size: 53x33x80 mm/2.1x1.3x3.1 in, Connect Pin:4.8x0.5mm/0.19x0.02in
US
500+ units
Planning a bulk order? Contact customer service for wholesale pricing and availability.
Unable to complete your purchase? Email customer service with the product model and destination country. We will help with availability or an alternative ordering method.
Capacitance0.91 uF
Voltage Rating2100V AC

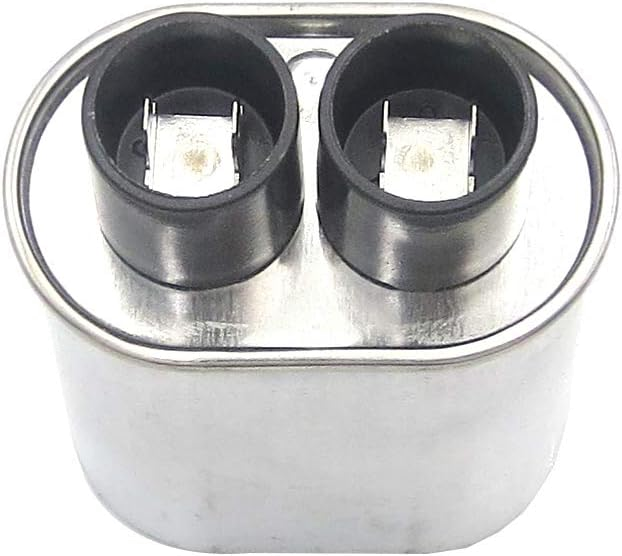

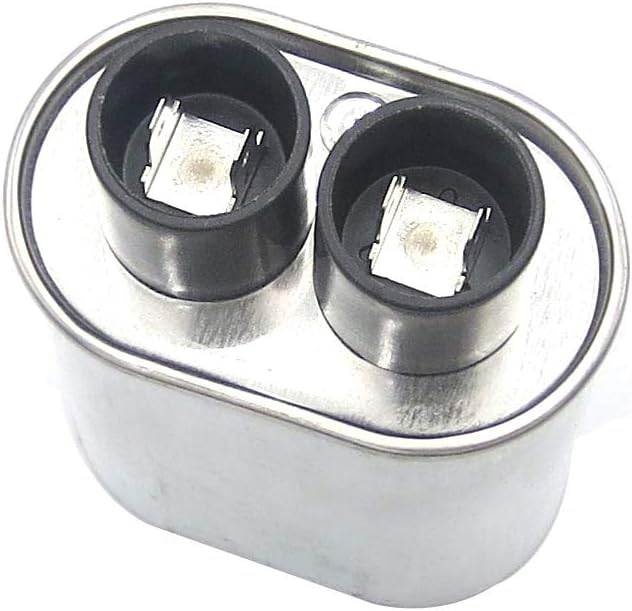

Terminal Configuration2+2 Terminal
Pin Size3/16" Quick Connect (Small)
Internal Resistor10M Megohm
PCB ContentNo PCB
CertificationCQC
Frequency50/60 Hz
💡 Compatibility Tips
- Start by matching 0.91uF and 2100V AC, then verify frequency, resistor, mounting and physical dimensions against the original part.
- The original part should use the same 2+2 terminal grouping, or the appliance service documentation must explicitly approve this layout.
- Important: Check the pin size — this product uses 3/16" (small) quick connect tabs. Make sure this matches your original.
